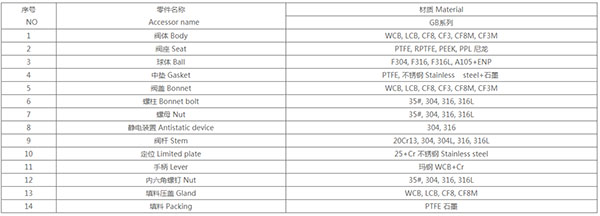

主要零件和材質 Main parts and materials

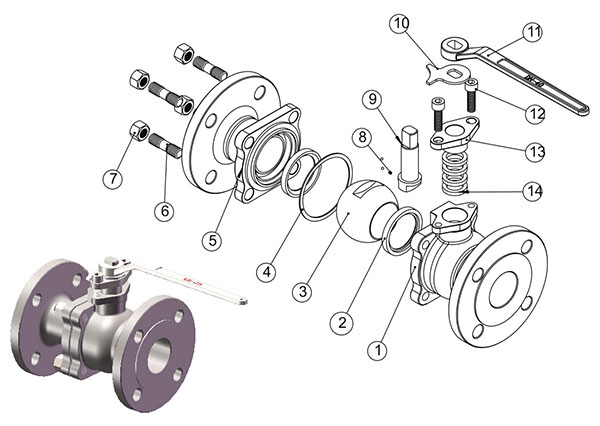

產品結構特點 Construction features
1、先進的閥座：憑多方面經驗而設計的閥座，確保閥門密封，摩擦系數低，操作力矩小。多種閥座材料，適應范圍廣。
2、開關無誤的手柄：采用扁頭閥桿，與手柄的連接不會錯位，從而保證手柄指示的開關狀態與閥門一致。
3、鎖緊裝置：為防止閥門開關誤操作，在閥門全開、全關位置有鎖定孔，確保閥門處于正確的位置。
4、閥桿防飛結構：閥桿為下裝式，防止受壓飛出，同時可在火災后，與閥體形成金屬接觸，確保閥桿密封。
5、防靜電性能：在球性、閥桿、閥體之間設置彈簧，能將開關過程產生的靜電導出。
6、耐火結構：各個部位(球與閥體、中法蘭、閥桿與閥體)設計成金屬接觸，滿足耐火要求，符合API 6FA，API 607的規定。
1. Advanced seat: seat designed with multiple experience to ensure valve seal, low friction coefficient and small operating torque. Multiple seat materials are widely used.
2. Unerror-free handle: use the flat head stem, and the connection of the handle will not be misaligned, thus ensuring that the switch state of the handle indicates the same as the valve.
3. Locking device: in order to prevent the valve switch from misoperation, the valve is fully open and the whole position has a locking hole to ensure that the valve is in the correct position.
4. Stem anti-flying structure: the stem is mounted to prevent the pressure from flying out, and the metal contact with the valve body can be formed after the fire to ensure the stem seal.
5. Anti-static performance: set up springs between ball, stem and valve body, and can export static electricity generated by switch process.
6. Refractory structure: various parts (ball and valve body, middle flange, stem and valve body) are designed to meet the fire resistance and meet the requirements of API 6FA and API 607.
產品特征 Spericfications
適用介質：水、氣、油品、天然氣和酸堿腐蝕性介質
適用溫度：-196~150℃
驅動方式：手動、氣動、電動等
公稱壓力：1.0~6.3MPa
公稱通徑：DN15~250mm
Applicable media: water, gas, oil, gas and acid and alkali corrosive medium
Applicable temperature: -196~150℃
Driver: manual, pneumatic, electric, etc
Nominal pressure: 1.0~6.3MPa
Nominal size: DN15~250mm
技術規范 Technical specification

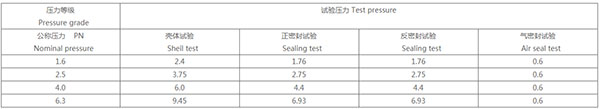

試驗壓力 Test prssure

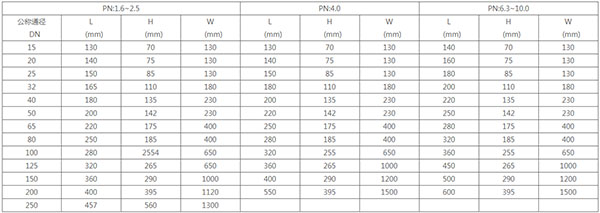

球閥結構長度和外接尺寸 Main connection dimensions
